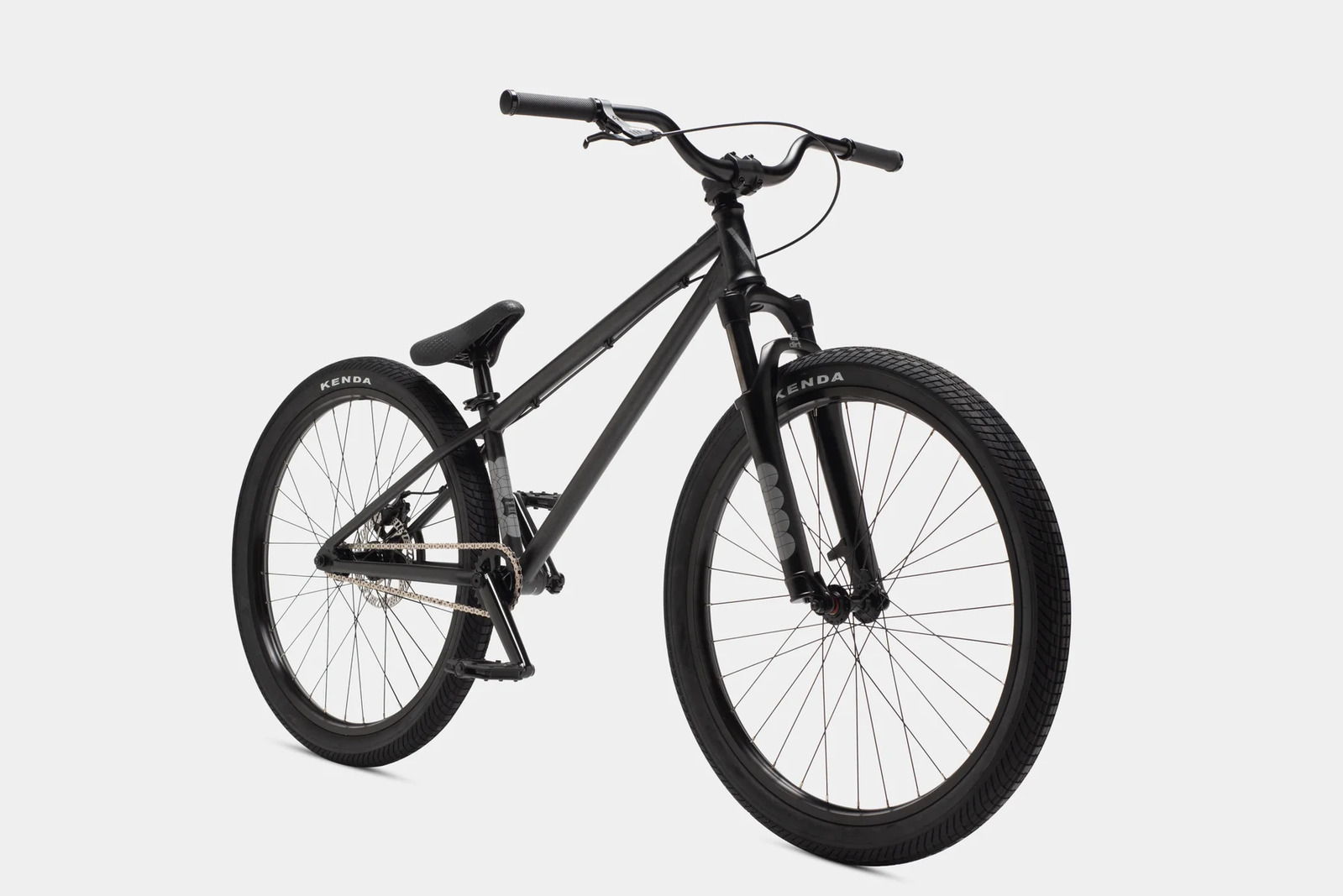

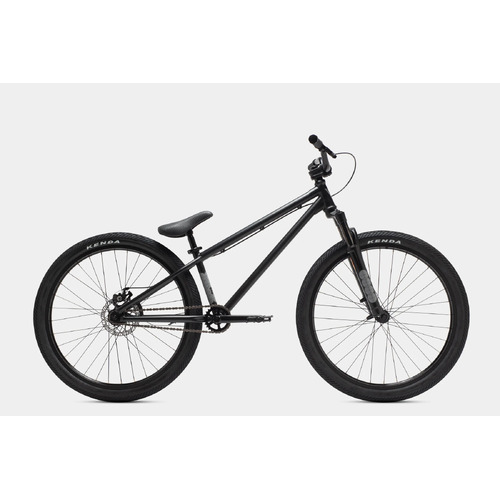

VERDE RADIX DJ 26 DIRT JUMP MTB - MATTE BLACK

The Radix is where radical meets attainable. Our custom chromoly DJ delivers serious shredding at a budget friendly price. DJ must haves include a suspension fork and rear disc brake. Updated frame, same proven spec includes sealed wheels and mid BB, 26-12T gearing, heat-treated tubular chromoly cranks, and a custom Verde Branch 1-piece seat/post combo.

Specifications:

Fork: RST Dirt, HD spring, straight steerer tube, 80mm travel
Bars: 6061 aluminum, 3” rise, 29.5” wide, 31.8mm clamping area
Stem: Front load, 42mm reach
Headset: Sealed integrated
Brake: Tektro Aires mechanical disc w/ 160mm rotor
Lever: Tektro, 2-finger design
Rear Hub Alloy, fully sealed, 10mm (3/8”) axle, 12-tooth driver
Front Hub: Alloy, fully sealed, 10mm (3/8”) female axle
Sprocket: 26-tooth, stamped 6061 aluminum
Cranks: Tubular chromoly 3-piece, 170mm
BB: 19mm sealed Mid
Chain: KMC 410, silver
Pedals: DUO Brand Resilite platform
Front Rim: 6061 aluminum, double wall, 32-hole
Rear Rim: 6061 aluminum, double wall, 32-hole
Spokes: Black w/ silver nipples
Front Tire: 26 x 2.1” Kenda
Rear Tire: 26 x 2.1” Kenda
Seat: Verde Branch w/ integrated post
Seat Post: Uni-style, integrated, alloy, 27.2mm diameter, 175mm length
Seat Clamp: Alloy, quick-release
Grips: Lock-on, 130mm
Weight: 30.4 lbs

Frame: 100% chromoly w/ CNC machined integrated head tube, Mid BB, top and down tube gussets w/ Verde logo
Top Tube Length: 22.34” (23.22” effective)
Chain Stay Length 15.3”
Head Tube Angle 69º
Seat Tube Angle 71º
Bottom Bracket Height 13”
Standover Height: 10”
