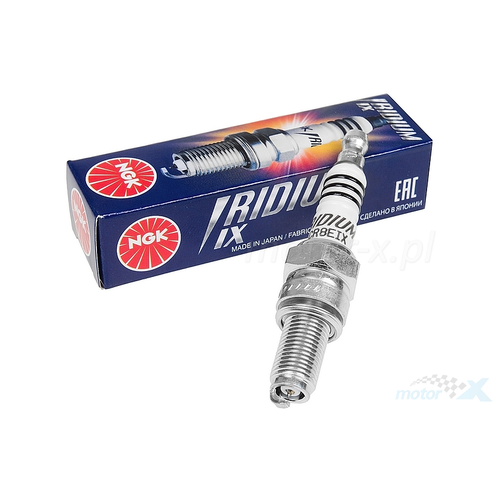

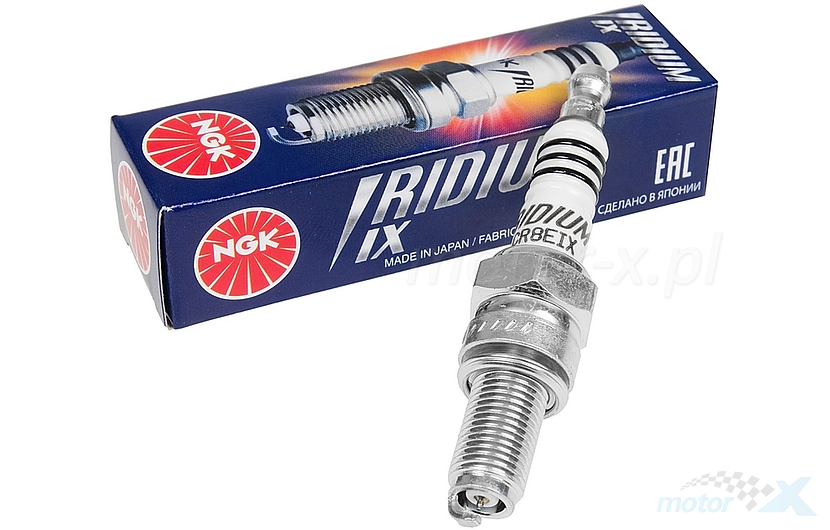

NGK CR8EIX IRIDIUM SPARK PLUG

NGK's IX Iridium Series Plugs were Designed Specifically for the Performance Enthusiast.

• Fine Wire Center Electrode Ensures High Durability and a Consistently Stable Spark
• Iridium Alloy has an Extremely High Melting Point, Perfect for Today's High-Tech, High Performance Engines
• Trivalent Metal Plating Provides Superior Anti-Corrosion and Anti-Seizing Properties
• Corrugated Ribs Prevent Flashover
• Pure Alumina Silicate Ceramic Insulator, Provides Superior Strength and Better Heat Transfer
• Copper Core Aids in Heat Removal
• Triple Seals Prevent Leakage

Shell

• Thread Size: 10mm
• Thread Pitch: 1.0mm
• Seat Type: Gasket
• Resistor: Yes
• Resistor Value: 5K Ohm
• Reach: 19mm (3/4")
• Hex Size: 5/8" (16mm)
• Terminal Type: Threaded Stud
• Overall Height: ISO
• Gap: .031" (0.8mm)

Center Electrode

• Material: Iridium
• Type: Fine Wire
• Size: 0.6mm
• Projection: Non-Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Shape: Taper Cut
• Quantity: 1
