Description

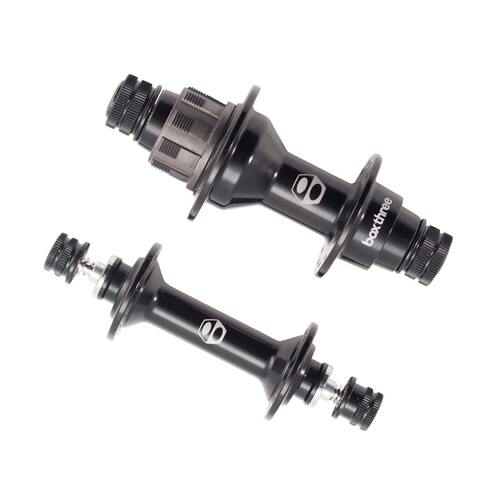

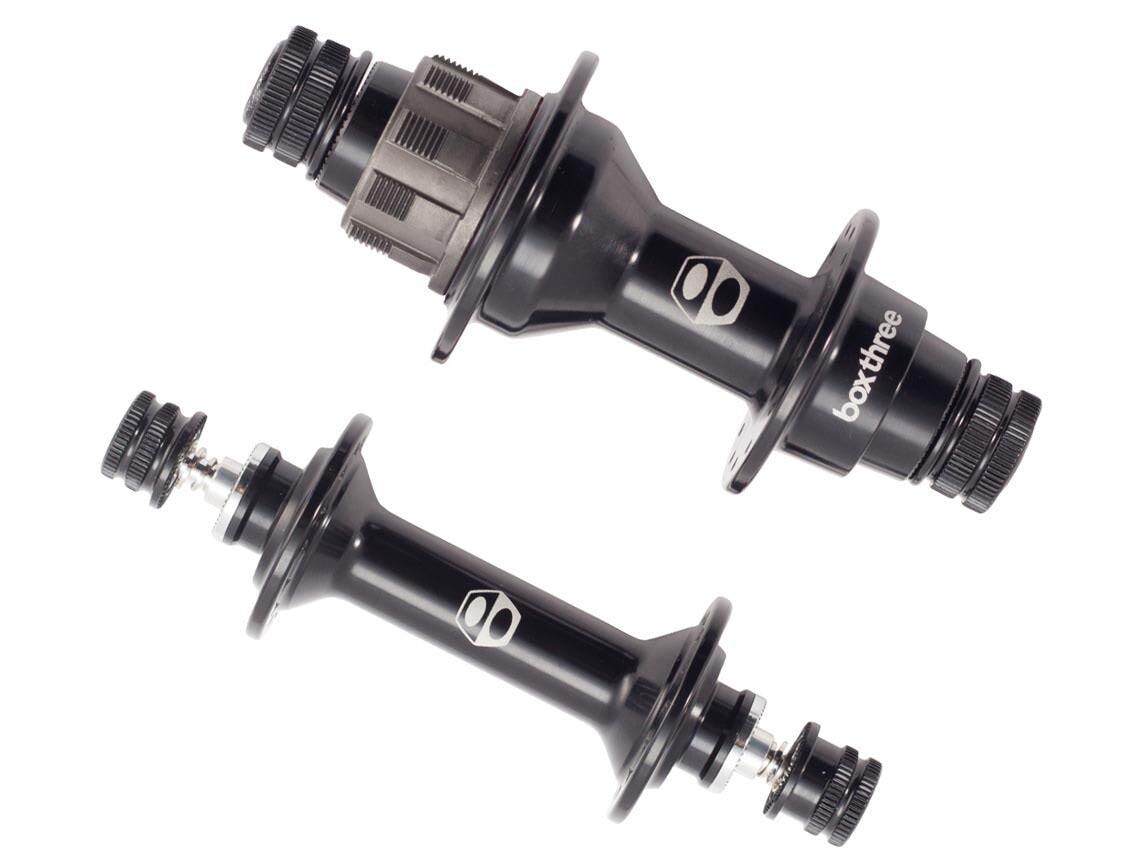

The Box Three mini Hubset is a lightweight version of the Pro sized and still offers a super-fast 4-Pawl 120-Point engagement system, precision sealed bearings but uses aluminum axles, smaller hub-shells, and lightweight hardware; for the smaller riders who like to go fast!
Hub includes Steel Bolts, Lockring, Spacers, and 16t Cog.
- Forged Aluminum Hubshell
- Aluminum Axle
- 10mm Axle
- 4-Pawl 60 Points of Engagement
- Chromoly Driver
- Sealed Bearings
- Straight Flanges
- Laser Etched Graphics
COMPATIBILITY
- Box One XS Mini Carbon 1" Alloy Steerer 20" x 10mm Fork
- Box One XE Expert Carbon 1” Alloy Steerer 20” x 10mm Fork
- Box One Cassette Spacer Kit
- Box One Hub Lock Ring
- Box One 24x1-1/8" 28-Hole Front Rim Black
- Box One 20X 1-1/8" 28-Hole Rim Rear Black
FAQ
The internals can be easily disassembled by removing the drive-side lock-nut; the internals can be wiped down with a lint-free rag and mild de-greaser and re-greased with a light amount of grease on the outside of the pawls. Too much grease could cause the pawls to stick or skip. Only disassemble if an issue is present.
| Rear | Front | |
|---|---|---|
| Axle | 10x100 | 10x110 |
| Hole Drilling | 28 | 28 |
| Material | Aluminum, Hardened Alloy Steel | Aluminum, Hardened Alloy Steel |
| Hardware | Steel | Steel |
| Driver Type | Shimano Compatible | Shimano Compatible |
| Engagement Sytem | 4-Pawl 60 Points of Engagement | 4-Pawl 60 Points of Engagement |
| Brake Type | Rim Brake | Rim Brake |
| Finish | Gloss Black | Gloss Black |
| Weight | 245g/8.6oz | 130g/4.5oz |
Specifications
| SKU | BXHU173HB28BK |
| Barcode # | 616043830223 |
| Brand | BOX |
